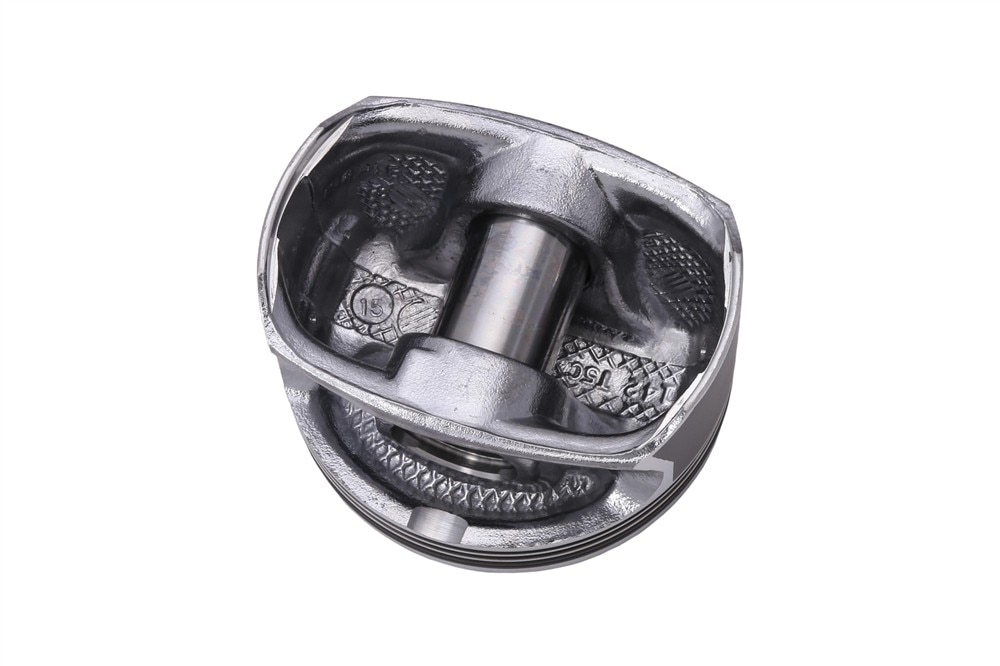

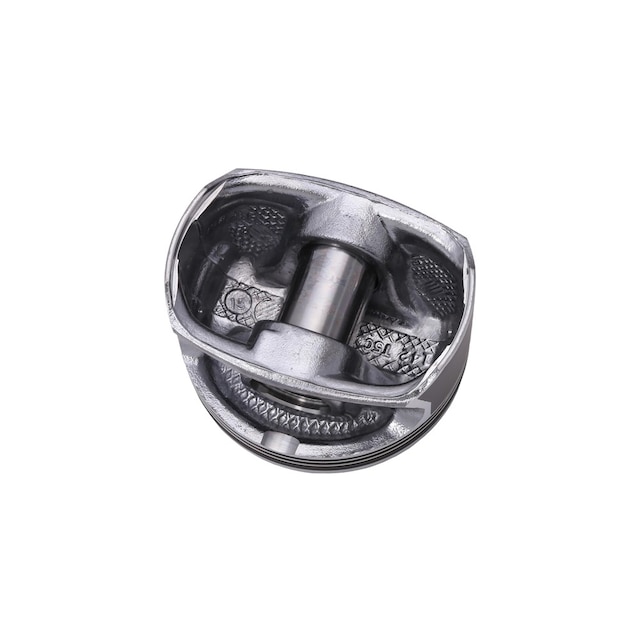

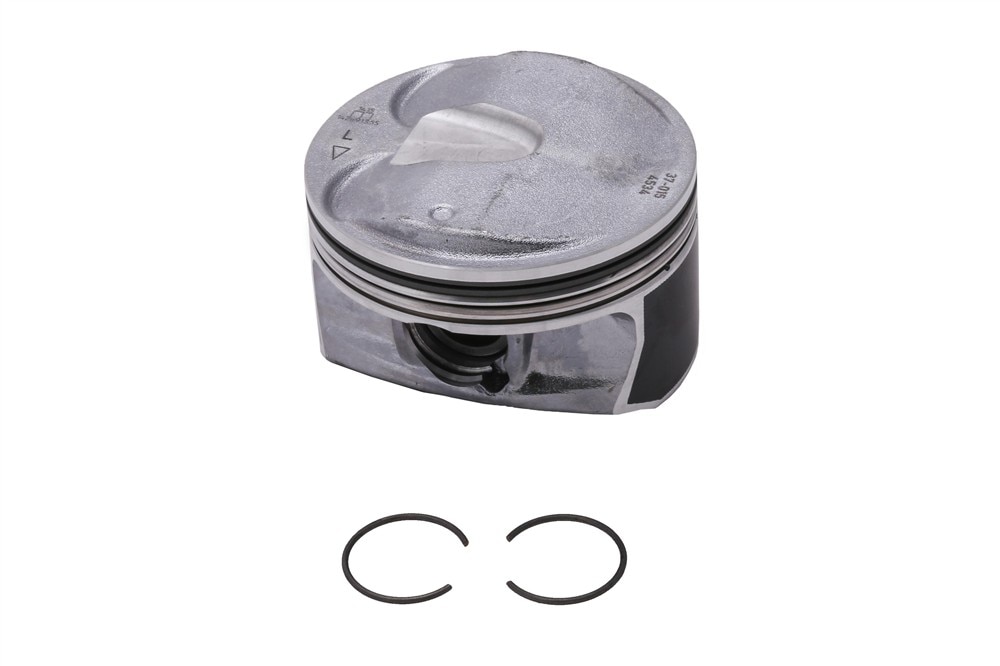

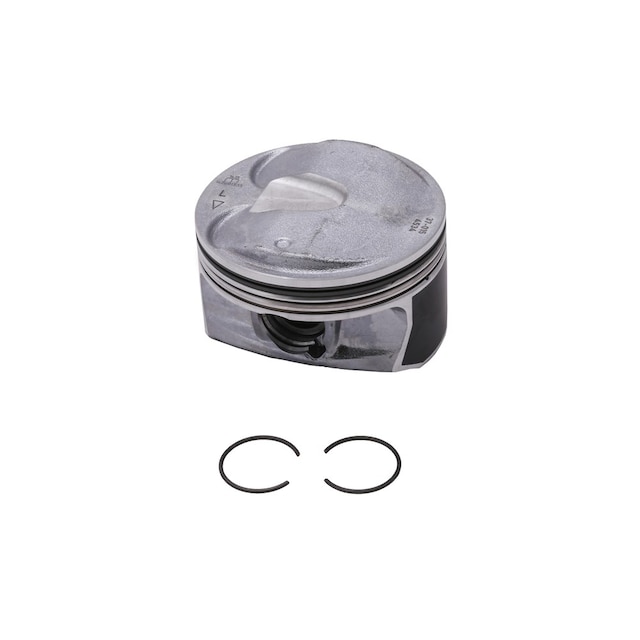

GM Genuine Parts Driver Side Engine Piston
GM Part #12654417
ACDelco Part #12654417
About this product
GM Genuine Parts Engine Pistons are designed, engineered, and tested to rigorous standards, and are backed by General Motors. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE).
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
- GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
- GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
- GM regularly updates production and service part designs to integrate new materials and technologies
Piston Pin Length2.081 in / 52.85 mm
ClassificationOE
Piston Pin Inside Diameter0.697 in / 17.7 mm
Piston Pin Outside Diameter0.945 in / 24 mm
Piston Inside Diameter3.358 in / 85.3 mm
Ring Outside Diameter3.503 in / 88.97 mm
Piston Outside Diameter3.504 in / 89 mm
Oil Spacer Ring Thickness0.028 in / 0.72 mm
Top Compression Ring Thickness0.039 in / 0.98 mm
Second Compression Ring Thickness0.046 in / 1.18 mm
Oil Ring Thickness0.059 in / 1.5 mm
Skirt Length0.162 in / 4.11 mm
Ring Inside Diameter3.244 in / 82.4 mm
Piston Head TypeDome
Piston Pin MaterialSteel
OversizedYes
Skirt TypePartial
Piston Pin Incorporated BearingsNo
Piston MaterialAluminum
Assembly Lubricant IncludedNo
Ring MaterialSteel
Piston Pin Length2.081 in / 52.85 mm
Piston Pin Inside Diameter0.697 in / 17.7 mm
Piston Inside Diameter3.358 in / 85.3 mm
Piston Outside Diameter3.504 in / 89 mm
Top Compression Ring Thickness0.039 in / 0.98 mm
Oil Ring Thickness0.059 in / 1.5 mm
Ring Inside Diameter3.244 in / 82.4 mm
Piston Pin MaterialSteel
Skirt TypePartial
Piston MaterialAluminum
Ring MaterialSteel
ClassificationOE
Piston Pin Outside Diameter0.945 in / 24 mm
Ring Outside Diameter3.503 in / 88.97 mm
Oil Spacer Ring Thickness0.028 in / 0.72 mm
Second Compression Ring Thickness0.046 in / 1.18 mm
Skirt Length0.162 in / 4.11 mm
Piston Head TypeDome
OversizedYes
Piston Pin Incorporated BearingsNo
Assembly Lubricant IncludedNo
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
